Question 1

What is the maximum payload capacity of the TY-Z24 rotary platform?

Accepted Answer

The TY-Z24 features a heavy-duty rotary platform with a maximum payload capacity of 70 kg, supported by a high-strength crossed roller bearing structure for stable, precise positioning.

Question 2

How long can the TY-Z24 operate on a single charge?

Accepted Answer

The TY-Z24 is powered by a 48V 80Ah lithium battery and supports up to 4 hours of continuous operation, making it suitable for extended field missions without recharging.

Question 3

What is the remote control range of the TY-Z24?

Accepted Answer

The TY-Z24 supports remote control and real-time HD video transmission at distances exceeding 2 km in unobstructed environments.

Question 4

What equipment can be mounted on the TY-Z24?

Accepted Answer

The modular payload system supports HD cameras, thermal imaging devices, LiDAR, environmental monitoring sensors, communication relay equipment, and custom professional sensors.

Question 5

What is the rotation range of the TY-Z24 platform?

Accepted Answer

The rotary platform offers horizontal rotation of ±90° and vertical tilt from -20° to +50°, enabling multi-angle observation and equipment operation.

Question 6

What industries and use cases is the TY-Z24 designed for?

Accepted Answer

The TY-Z24 is designed for industrial inspection, emergency response, environmental monitoring, scientific research, campus security, and infrastructure maintenance including bridges, tunnels, mining sites, and power facilities.

Question 7

What terrain can the TY-Z24 operate on?

Accepted Answer

The tracked chassis with 200mm ground clearance allows the TY-Z24 to operate across complex terrain including uneven ground, slopes, and environments inaccessible to wheeled vehicles. It also supports zero-radius turning for tight spaces.

Question 8

What is the video resolution supported by the TY-Z24?

Accepted Answer

The TY-Z24 supports real-time 1080P HD video transmission to the high-brightness remote control terminal, ensuring clear visual feedback during field operations.

Parameter	Value
General
Dimensions (L × W × H)	1030 × 780 × 850 mm
Vehicle Weight (Unloaded)	200 kg
Ground Clearance	200 mm
Travel Speed	0 – 2 m/s
Power System
Power Type	Electric (Lithium Battery)
Battery	48V – 80Ah Lithium
Rated Voltage	48V
Drive Motor	1kW × 2 (Dual Permanent Magnet Brushless)
Runtime	4 hours (continuous)
Remote Control System
Control Range	2 km (unobstructed)
Video Resolution	1080P HD
Rotary Platform (PTZ System)
Horizontal Rotation	-90° to +90°
Vertical Tilt	-20° to +50°
Max Payload Capacity	70 kg
Concentricity	≤ 0.01 mm
Parallelism	≤ 0.02 mm

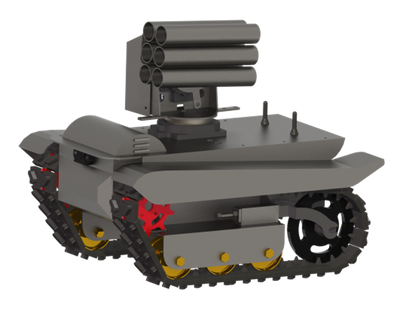

TY-Z24 Heavy-Duty Tracked UGV — Remote Control Unmanned Platform with 70kg Rotary Payload & 2km Live Video

Product Advantages

Core Features

Application Scenarios

Specifications

Frequently Asked Questions

TY-Z24 Heavy-Duty Tracked UGV | 70kg Rotary Platform & 2km Remote Control
