Tracked chassis Self-contained water supply 1 km remote control IP66 waterproof 40 m water cannon range

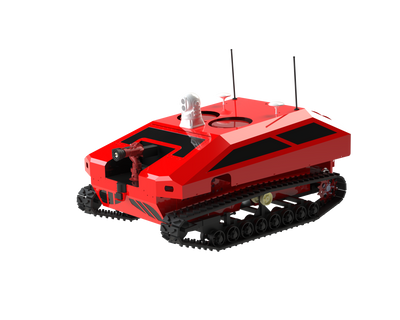

RXR-M16D-2 all-in-one tracked firefighting robot

Model: RXR-M16D-2 | Ideal for: residential complexes · schools · factories · shopping malls · oil depots · chemical plants · museums

The RXR-M16D-2 is a self-contained tracked firefighting robot equipped with an on-board high-pressure pump, 600 L water tank, and remote-controlled water cannon. It operates independently — no fire truck required — and can be deployed within seconds to suppress fires at the earliest stage, protecting lives and assets with minimal damage.

40 m

Max cannon range

600 L

On-board water tank

1 km

Remote control range

6.5 h

Drive endurance

45°+

Max climbing grade

SEO meta — suggested copy

Page titleRXR-M16D-2 tracked firefighting robot — self-contained, 40 m cannon, 1 km remote control

Meta descriptionThe RXR-M16D-2 all-in-one firefighting robot features a built-in 600 L water tank, high-pressure pump, and 40 m water cannon. No fire truck needed. IP66, 1 km remote control. Ideal for factories, schools & warehouses.

Primary keywordsfirefighting robot, tracked fire suppression robot, autonomous firefighting vehicle, remote control fire robot

Secondary keywordsself-contained fire robot, industrial fire suppression, unmanned fire truck, fire robot with water tank

Key features

⚡

Fully self-contained operation

Built-in high-pressure pump and 600 L water tank mean no fire truck is needed. An optional 1,200 L tow tank extends total capacity to 1,800 L for longer operations.

🔧

Superior off-road mobility

Rubber tracked chassis climbs slopes over 45°, clears 300 mm obstacles, and crosses 800 mm trenches — ready for urban streets, factory floors, and forest terrain.

🎯

360° dead-angle-free coverage

Patent water cannon with pan-tilt head: 190° horizontal rotation, 90° vertical tilt. Combined with vehicle movement, delivers full 360° coverage up to 40 m.

📡

1 km remote control

Lightweight single-hand controller with 1 km line-of-sight range. Built-in 4G module enables back-end remote operation with live HD video feed from the scene.

💧

Dual-mode water discharge

Switch between jet and mist modes via remote. Jet mode targets the fire source precisely; mist mode creates a protective curtain for safe personnel evacuation.

🧩

Modular expansion

Optional add-ons include fire grenade launcher, toxic gas detector, thermal imaging camera, and smoke exhaust unit for site-specific customization.

Technical specifications

Vehicle — general

Parameter	Value
Overall dimensions (L × W × H)	2,350 × 1,530 × 950 mm (excl. pan-tilt)
Curb weight	800 kg
On-board water tank capacity	600 L (expandable to 1,800 L with tow tank)
Max travel speed	0 – 2 m/s
Fire pump rated flow	10 L/s @ 0.8 MPa
Water cannon range	0 – 40 m
Cannon tilt range	-25° to +85°
Cannon rotation range	Left 95° + right 95° (total 190°)
Ground clearance	120 mm
Max obstacle clearance	300 mm
Working lights	80 W LED
Waterproof rating	IP66

Chassis

Parameter	Value
Chassis type	Rubber tracked
Track specification	230 × 72 × 66
Drive motor output	2.0 kW × 2
Battery	LiPo 14S-135Ah
Drive endurance	6.5 h (continuous driving)

Pan-tilt unit & remote controller

Parameter	Value
Data transmission	4G
Horizontal rotation	350°
Vertical rotation	-5° to +105°
Night vision range	30 m
Remote control range	≥ 1,000 m (line of sight)
Controller battery life	6 h
Joystick functions	Drive control + cannon pan-tilt control
Button functions	Lights, pump on/off, mist adjustment, etc.

Frequently asked questions

Can the RXR-M16D-2 operate without a fire truck? ⌄

Yes. The unit carries its own 600 L water tank and high-pressure pump, so it can begin suppression immediately after powering on — no external water supply or fire truck required. An optional 1,200 L tow tank extends total on-board capacity to 1,800 L for longer operations.

What environments is it designed for? ⌄

The robot's compact footprint fits in a micro fire station or standard garage, making it suitable for residential complexes, schools, factories, shopping malls, oil depots, chemical plants, and museums as permanent standby equipment. It's an affordable alternative to large fire trucks for facilities that need dense, on-site coverage.

How does it handle rough terrain or debris-filled fire scenes? ⌄

The rubber tracked chassis and low profile allow it to climb grades over 45°, clear 300 mm obstacles, and cross 800 mm trenches. This makes it capable of navigating urban streets, warehouse floors, and forest environments to reach the fire source as quickly as possible.

Does the operator need to be near the fire scene? ⌄

No. The remote controller has a line-of-sight range of at least 1 km, allowing operators to stay in a safe area. The integrated 4G module also supports back-end remote control with real-time HD video feed from the scene, keeping personnel entirely out of danger.

What is its waterproof rating? Can it be stored outdoors? ⌄

It carries an IP66 waterproof rating, meaning it is fully protected against high-pressure water jets. The entire vehicle can be hosed down for cleaning and left outdoors year-round without weather-related degradation, making maintenance straightforward.

What expansion modules are available? ⌄

The platform supports multiple add-on modules including a fire grenade launcher, toxic/combustible gas detector, thermal imaging camera, and smoke exhaust unit. Custom configurations are available to match specific site requirements.

How does it compare in cost to similar firefighting robots? ⌄

Most comparable robots on the market cost upwards of $100,000 USD and still require a fire truck for water supply. The RXR-M16D-2 integrates the chassis, pump, tank, and cannon into a single affordable unit — making dense deployment across multiple facilities practically viable for the first time.
