MINI Tracked Unmanned Ground Vehicle (UGV)

Compact All-Terrain Robotic Platform for Inspection, Monitoring, and Remote Operations

The MINI Tracked Unmanned Ground Vehicle (UGV) is a lightweight and highly portable robotic platform designed for remote inspection, monitoring, exploration, and operation in challenging environments. Engineered for mobility and reliability, the MINI UGV can navigate rugged terrain including mountains, beaches, gravel roads, muddy surfaces, industrial sites, and disaster-response areas.

Weighing only 13 kg, the platform is compact enough for easy transportation while delivering exceptional off-road capability. Its advanced tracked differential steering system enables zero-radius turning, allowing the vehicle to maneuver efficiently in confined spaces. The innovative rollover-driving function allows the vehicle to continue moving even after overturning, significantly improving operational reliability in demanding environments.

Equipped with real-time video transmission, long-range wireless control, and a modular payload compartment, the MINI UGV serves as an ideal solution for security inspection, environmental monitoring, infrastructure assessment, scientific research, emergency response, and unmanned remote operations.

Key Features

Ultra-Portable Design

Lightweight 13 kg chassis
Compact dimensions for easy transportation

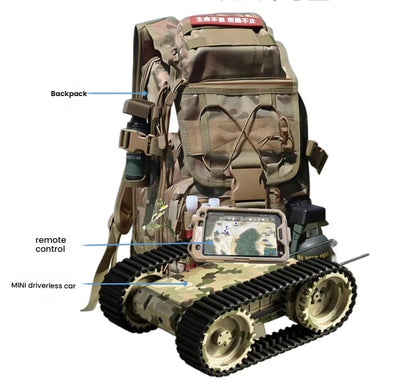

Rapid deployment in field environments

Superior All-Terrain Mobility

Tracked drive system for excellent traction
Climbs slopes up to 30°
Crosses obstacles up to 90 mm

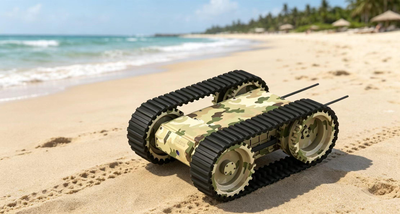

Suitable for sand, mud, gravel, and uneven terrain

Reliable Remote Operation

Up to 1 km wireless control range
Real-time HD video transmission
Dual-band communication support (2.4 GHz / 5.8 GHz)

Rollover Recovery Capability

Continues operation after vehicle rollover
Automatic drive-direction compensation
Increased mission reliability in difficult terrain

Modular Payload Architecture

Expandable payload compartment
Supports cameras, sensors, communication modules, and custom equipment
External 24V power output available for auxiliary devices

Industrial-Grade Durability

Operating temperature: -15°C to +45°C
IP56 weather-resistant protection
Suitable for outdoor and harsh-environment applications

Technical Specifications

Item	Specification
Product Name	MINI Tracked UGV
Vehicle Weight	13 kg
System Weight	18 kg
Dimensions (L×W×H)	490 × 385 × 190 mm
Ground Clearance	50 mm
Track Width	80 mm
Track Ground Contact Length	301 mm
Maximum Speed	17.5 km/h
Operating Time	Up to 1 Hour
Maximum Climbing Angle	30°
Maximum Obstacle Height	90 mm
Turning Radius	Zero-Radius Turning
Steering Type	Tracked Differential Steering
Waterproof Rating	IP56
Operating Temperature	-15°C to +45°C
Battery Type	Lithium Battery
Battery Capacity	24V 20Ah
Charging Time	Approx. 3 Hours
Remote Control Range	≥1 km
Communication Frequency	2.4 GHz / 5.8 GHz
Video Transmission	Supported
Payload Compartment Size	189 × 86 × 80 mm

Power System

Item	Specification
Motor Type	Brushless DC Motor
Motor Quantity	2
Motor Power	192W × 2
Total Output Power	384W
Rated Voltage	24V
Motor Torque	26 kgf·cm × 2
Stall Torque	52 kgf·cm

Control System

The MINI UGV utilizes a tracked differential steering system for precise maneuverability.

Steering Operation

Left turn: left motor speed decreases
Right turn: right motor speed decreases
Zero-radius turning supported

Driving Functions

Forward and reverse movement
Variable speed adjustment
Precise directional control
Emergency braking capability

Intelligent Rollover Operation

The vehicle automatically compensates for orientation changes after rollover, enabling continuous operation without requiring manual recovery.

Communication System

Wireless remote control
Real-time video feedback
Long-range operation
Dual-frequency communication

Optional Payloads & Accessories

The modular payload compartment can support:

HD Cameras
Night Vision Cameras
Thermal Imaging Cameras
Environmental Sensors
Inspection Equipment
Communication Modules
Positioning Systems
Custom Industry-Specific Payloads

Typical Applications

Industrial Inspection

Monitor pipelines, facilities, warehouses, factories, and infrastructure.

Security Patrol

Remote surveillance and perimeter inspection.

Environmental Monitoring

Collect data in remote or hazardous locations.

Emergency Response

Assist operations in disaster zones and difficult terrain.

Scientific Research

Serve as a mobile robotic platform for testing and development.

Agricultural Monitoring

Perform remote observation and field inspection.

Why Choose the MINI Tracked UGV?

✔ Compact and lightweight

✔ Excellent off-road capability

✔ Long-range remote control

✔ Real-time video transmission

✔ Zero-radius turning

✔ Rollover recovery function

✔ Modular payload design

✔ Industrial-grade durability

✔ Easy deployment and operation

FAQ

Q1: What is the maximum remote-control distance?

The MINI Tracked UGV supports wireless remote operation at distances of up to 1 kilometer under normal operating conditions.

Q2: Can the vehicle operate on sand, mud, and rough terrain?

Yes. The tracked drive system is specifically designed for challenging terrain, including beaches, muddy roads, gravel surfaces, slopes, and uneven ground.

Q3: Does the vehicle support video transmission?

Yes. The platform provides real-time video transmission, enabling operators to monitor surroundings remotely.

Q4: What happens if the vehicle rolls over?

The MINI UGV features a rollover-driving function that allows continued operation after overturning, improving reliability in field environments.

Q5: Can custom equipment be installed?

Yes. The vehicle includes a modular payload compartment that supports cameras, sensors, communication equipment, and other custom modules.

Q6: What is the operating temperature range?

The platform can operate in temperatures ranging from -15°C to +45°C.

Q7: Is the vehicle waterproof?

The MINI UGV is rated IP56, providing protection against dust and water spray for outdoor use.

Q8: What industries can use this platform?

The MINI Tracked UGV is suitable for industrial inspection, security patrol, environmental monitoring, emergency response, research projects, agriculture, and infrastructure maintenance.
